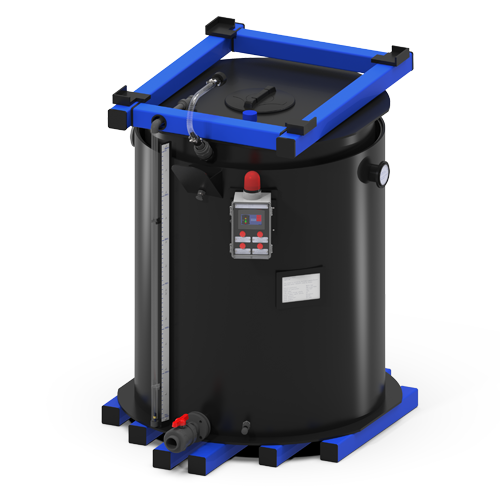

1,500L Holding Tank

Snosko’s Holding Tank can be supplied as a plug-and-play multi-role chemical tank system.

Its modular design allows it to be configured as a simple single walled sloped base tank, or as a mobile dual walled unit, capable of safely distributing chemicals. The dual wall ensures the 1,500L Holding Tank meets the dimensional and bund capacity requirements specified by AS3780-2008: The storage and handling of corrosive substances (when not roof loaded with an IBC).

Product features

This product is covered by Australian Complete Patent Application Number 2020203711 owned by Snosko. It can be configured to:

• Be fixed in place with an in-built anchorage system and lifting lugs, or supplied with a forklift lifting base to allow for the tank to be safely transported on-site
• Receive corrosive chemicals and critical liquids in a variety of filling/loading methods, such as pump filling using a fixed connection or Intermediate Bulk Container (also known as IBCs, bulky boxes, bins, totes, or cubes) decanting.
• Include a range of mechanical and electrical level indicators or leak detection sensors for critical applications.

Operational specifications

• 1,500L Tank capacity
• 1,650L Dual wall capacity (110% of tank)
• Rated to Specific Gravity 1.8SG
• 2000kg Intermediate Bulk Container (IBC) decanting frame rating
• 400kg Tank weight (with dual wall)
• Manufactured as per DVS guidelines (German code for plastics welding)

Material specifications

• All wetted components to be thermoplastic
• All steel components to be stainless steel grade 316
• All composite components to be vinyl ester GFRP
• All seals to be EPDM or FKM (Viton)

Chemical applications

Snosko’s Holding Tanks are commonly used to store:

• Sodium hypochlorite (bleach)
• Hydrochloric acid
• Sodium hydroxide (caustic)
• Sulfuric acid
• Oxygen scavengers (such as sodium metabisulphite)
• Citric acid
• Coagulants (such as poly-aluminium chloride)
• Fluorosilicic acid

Relevant standards for installation

• AS1170 – Structural design actions
• AS3780 – The storage and handling of corrosive substances
• AS1319 – Safety signs for the occupational environment
